HPCCE and HPCFE

Pack of 20 / 50 / 100 units

For price consultation, please contact

HPCCE

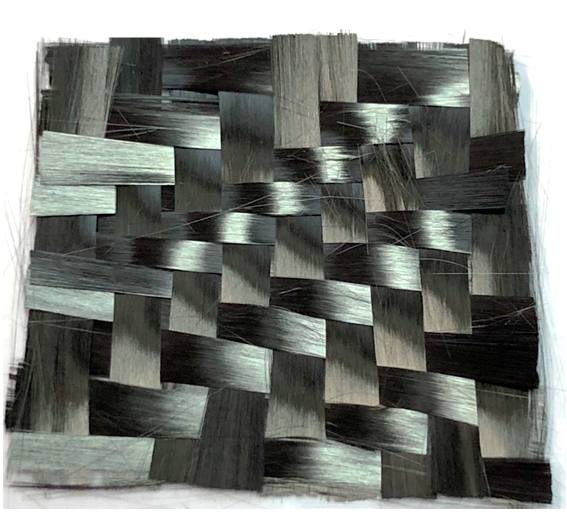

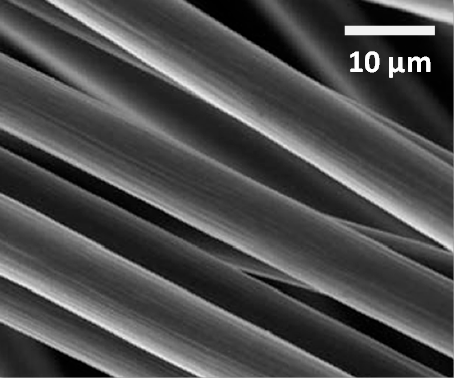

HPCCE is a carbon cloth electrode composed by microfibers without binders or PTFE.

HPCCE combines the robustness, excellent electrochemical performance and great low-cost compared to conventional woven and non-woven carbon paper.

  • Robust
  • Flexible
  • Thermal, chemical and electrochemical stability
  • No binder
  • High conductivity

We offer two options of HPCCE, a hydrophobic HPCCE (HPCCE-5F) and a hydrophilic HPCCE (HPCCE-5H) in different sizes, see below:

HPCCE-5H

HPCCE-5H is a hydrophilic carbon cloth electrode composed by microfibers without binders or PTFE.

HPCCE-5H has 5 cm2. (2.25 x 2.25 cm) and total thickness around 200 um (microns).

A sonolytic treatment promotes controlled oxidation on the material surface, providing high hydrophilicity, high electroactive surface area, and fast heterogeneous electron transfer with organic, and organometallic redox active compounds, and metallic ions.

It is a suitable to be used as electrodes in aqueous batteries and fuel cells.

  • Robust
  • Flexible
  • Thermal, chemical and electrochemical stability
  • Binder-free
  • High conductivity
  • Hydrophilic
  • Ready to use – No chemical or thermal treatments are required before using.

HPCCE-5H2

HPCCE-5H2 is a carbon cloth electrode composed by microfibers without binders or PTFE.

HPCCE-5H2 has 5 cm2. (2.25 x 2.25 cm) and total thickness around 400 um (microns).

A sonolytic treatment promotes controlled oxidation on the material surface, providing high hydrophilicity, high electroactive surface area and fast heterogeneous electron transfer with organic, and organometallic redox active compounds, and metallic ions.

It is a suitable to be used as electrodes in aqueous batteries and fuel cells.

  • Robust
  • Flexible
  • Thermal, chemical and electrochemical stability
  • Binder-free
  • High conductivity
  • Hydrophilic
  • High active electrochemical surface
  • Ready to use – No chemical or thermal treatments are required before using.

Please, contact us for customized electrode sizes.

HPCCE-5F

HPCCE-5F is a carbon cloth electrode composed by microfibers without binders or PTFE.

HPCCE-5F has 5 cm2. (2.25 x 2.25 cm) and total thickness around 200 um (microns).

It is a suitable to be used as electrodes in non-aqueous electrochemical systems.

  • Robust
  • Flexible
  • Thermal, chemical and electrochemical stability
  • Binder-free
  • High conductivity
  • Hydrophobic
  • Ready to use – No chemical or thermal treatments are required before using.

Please, contact us for customized electrode sizes.

HPCCE-5F2

HPCCE-5F2 is a carbon cloth electrode composed by microfibers without binders or PTFE.

HPCCE-5F2 has 5 cm2. (2.25 x 2.25 cm) and total thickness around 400 um (microns).

It is a suitable to be used as electrodes in non-aqueous electrochemical systems.

  • Robust
  • Flexible
  • Thermal, chemical and electrochemical stability
  • No binder
  • High conductivity
  • Hydrophobic
  • Ready to use – No chemical or thermal treatments are required before using.

Please, contact us for customized electrode sizes.

Pack of 20 / 50 / 100 units

For price consultation, please contact

HPCFE

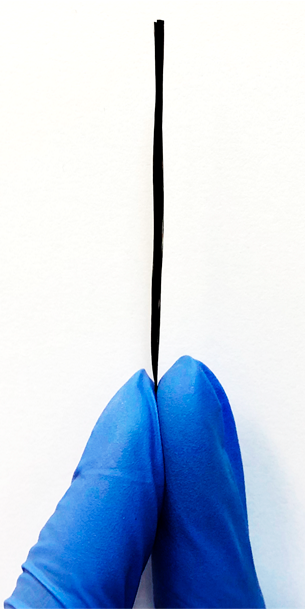

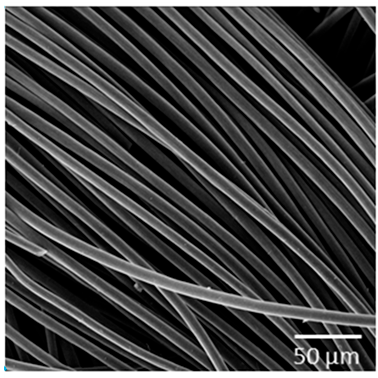

HPCFE is a flexible carbon electrode composed by around 5,000 carbon microfibers with 7 µm in diameter.

HPCFE provide a fast heterogeneous electron transfer with organic and organometallic redox active compounds, and metallic ions.

  • Robust
  • Flexible
  • Thermal, chemical and electrochemical stability
  • Binder-free
  • High conductivity

We offer two options of HPCFE, a hydrophobic HPCCE (HPCFE-5F) and a hydrophilic HPCFE (HPCFE-5H), see below:

HPCFE-3H

HPCFE-3H is a hydrophilic flexible carbon electrode composed by around 5,000 microfibers with 7 µm in diameter.

HPCFE has 3 cm x 0.05 cm.

HPCFE shows oxygen-functional groups on its surface, providing hydrophilicity and excellent electrochemical features in aqueous electrolytes.

HPCFE-3H provide a fast heterogeneous electron transfer with organic and organometallic redox active compounds, and metallic ions.

  • Robust
  • Flexible
  • Thermal, chemical and electrochemical stability
  • Binder-free
  • High conductivity
  • Hydrophilic
  • High active electrochemical surface
  • Ready to use – No chemical or thermal treatments are required before using.

Please, contact us for customized electrode sizes.

HPCFE-3F

HPCFE-3F is a hydrophobic flexible carbon electrode composed by around 5,000 microfibers with 7 µm in diameter.

HPCFE has 3 cm x 0.05 cm.

It is a suitable to use in non-aqueous electrochemical systems.

  • Robust
  • Flexible
  • Thermal, chemical and electrochemical stability
  • Binder-free
  • High conductivity
  • Ready to use – No chemical or thermal treatments are required before using.

Please, contact us for customized electrode sizes.
